微服务调试 #

本地联调 #

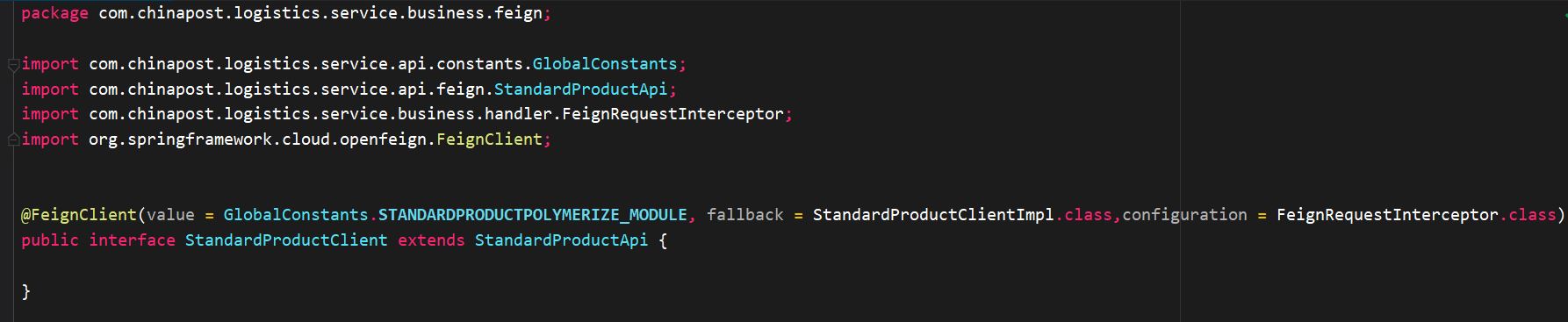

• 编写接口的@FeignClient注解，配置调用服务的URL地址

• java

  package com.chinapost.logistics.service.business.feign;
  import  com.chinapost.logistics.service.api.constants.GlobalConstants;
  import  com.chinapost.logistics.service.api.feign.StandardProductApi;
  import  com.chinapost.logistics.service.business.handler.FeignRequestIterceptor;
  import  com.springframework.cloud.openfeign.FeignClient;

  @FeignClient(value = GlobalConstants.STANDARDPRODUCTPOLYMERIZE_MODULE_NAME,fallback = StandardProductClientImpl.class,configuration = FeignRequestIterceptor.class )
  public interface StandardProductClient extends StandardProductApi{
  }


远程服务联调 #

• 微服务治理平台探针配置

  yaml

  nsf:
    type: http
    version: '2.0'
    nsfServer: 'http://nsf-server.sgp-pre.chinapost.com.cn'
    application:
      name: standard-product-polymerize
      version: 0.0.1
      projectCode: yysys
      envCode: prod
      mark: ''
      zone: default
      group: default
      tags: []
    manager:
      patterns:
        -
          className: ""
    authority:
      accessKey: f66e84db109c4890b422be7cc32edd81
      secretKey: b8cfb432496b46c9acc352246a97dfe3y

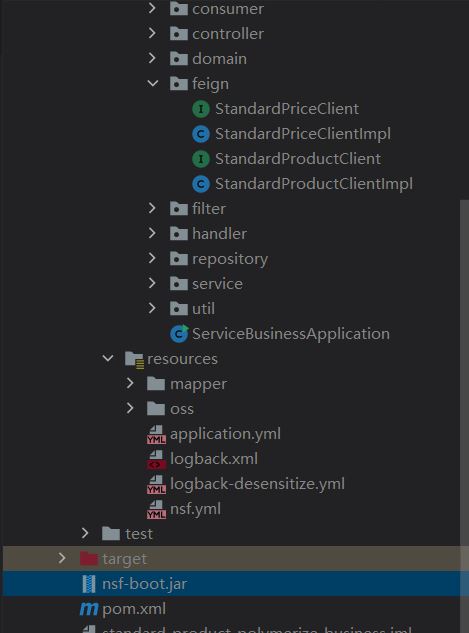

• 探针jar包配置

  nsf-boot.jar 包放到项目目录下

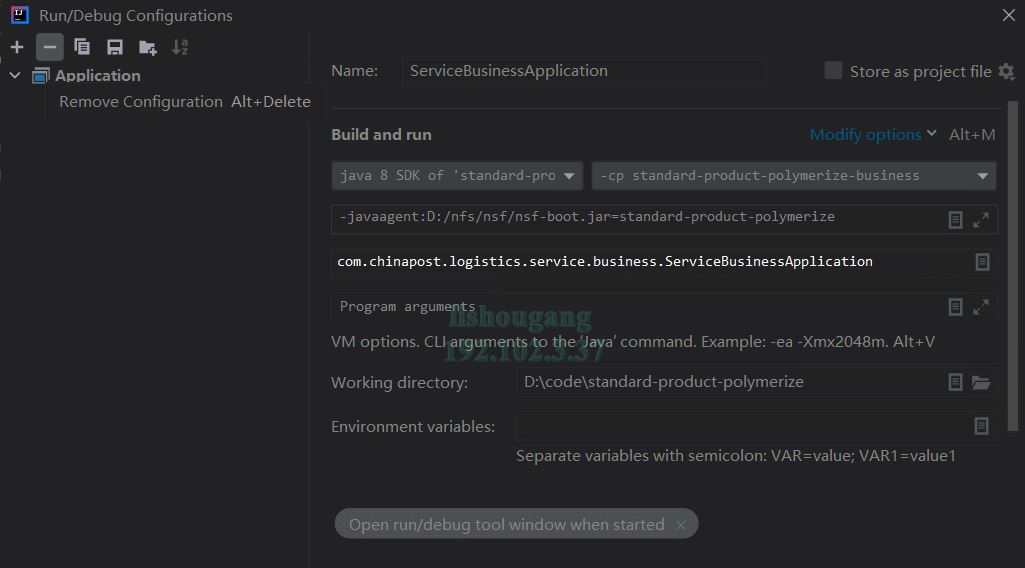

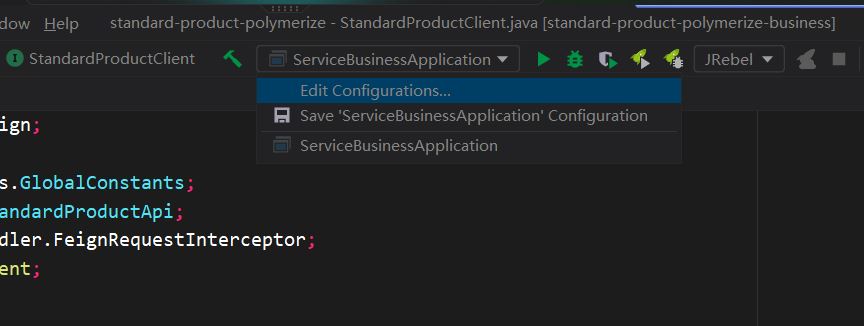

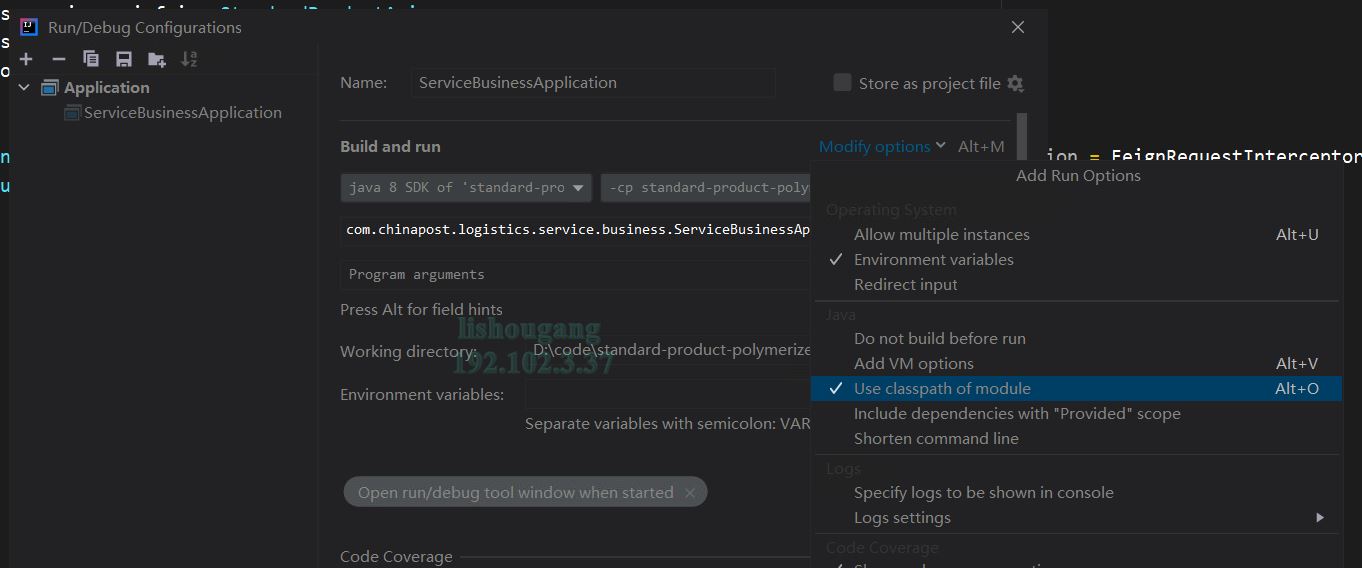

  调试运行配置

  java

  -javaagent:D:/nsf/nsf-boot.jar=standard-product-polyerize

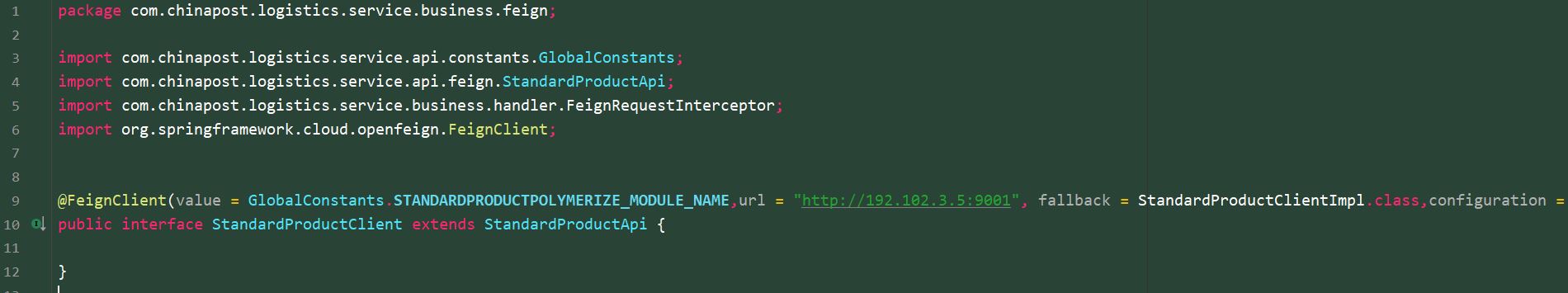

• 编写FeignClient接口 ，配置调用服务的URL :调用服务URL地址

package com.chinapost.logistics.service.business.feign;
import  com.chinapost.logistics.service.api.constants.GlobalConstants;
import  com.chinapost.logistics.service.api.feign.StandardProductApi;
import  com.chinapost.logistics.service.business.handler.FeignRequestIterceptor;
import  com.springframework.cloud.openfeign.FeignClient;

@FeignClient(value = GlobalConstants.STANDARDPRODUCTPOLYMERIZE_MODULE_NAME, fallback = StandardProductClientImpl.class,configuration = FeignRequestIterceptor.class )
public interface StandardProductClient extends StandardProductApi{
}
